Customized Semi Automatic Blow Moulding Machine For 0.3L 2L PET Bottle

Name: Customized Semi Automatic Blow Moulding Machine For 03L 2L PET Bottle
Brand: Waterpro
Price: 1 USD

China Customized Semi Automatic Blow Moulding Machine For 0.3L 2L PET Bottle wholesale

Brand Name : Waterpro

Model Number : WT-B4

Place of Origin : China

Neck Diameter(mm) : 30 mm

Bottle Volume(ml) : 2000 ml

cavity : 4 cavities

Max.Bottle Height(mm) : 130 mm

Max.Bottle Diameter(mm) : 105 mm

Voltage : 380V/220V

Weight (KG) : 1000 KG

Blow Moulding Type : Stretch Blow Moulding

Contact Now

Customized Factory Direct Sales (0.3-2L) Semi Automatic Blow Molding Machine

Specification:

Name	Item	Unit	Details
Blowing machine	Dimension	mm	17006002050mm
	Bottle Volume(max)	ml	2000
	Bottle volume(Min)	ml	50
	number of cavities	mold	2
	Model thickness(max)	mm	200
	Model width	mm	360*390
	Mold strock	mm	170
	Streching stroke(max)	mm	420
	Working pressure	Mpa	0.8-1.0
	Blowimg pressure	Mpa	2.0-3.0
Pre-heater	Dimension	mm	20806301380
	weight	kg	330
	voltage	KW	380V/14KW
Air compressor	working pressure	Mpa	0.8-1.0
Air compressor	air pressure	Mpa	3.0

Product Description

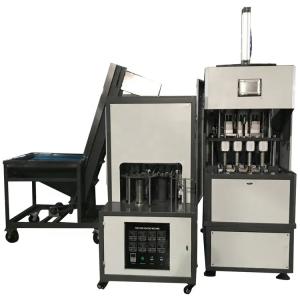

WT-B4 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000 ml.It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast. Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow.It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.

5.The machine is small with low investment, easy and safe to operate.
